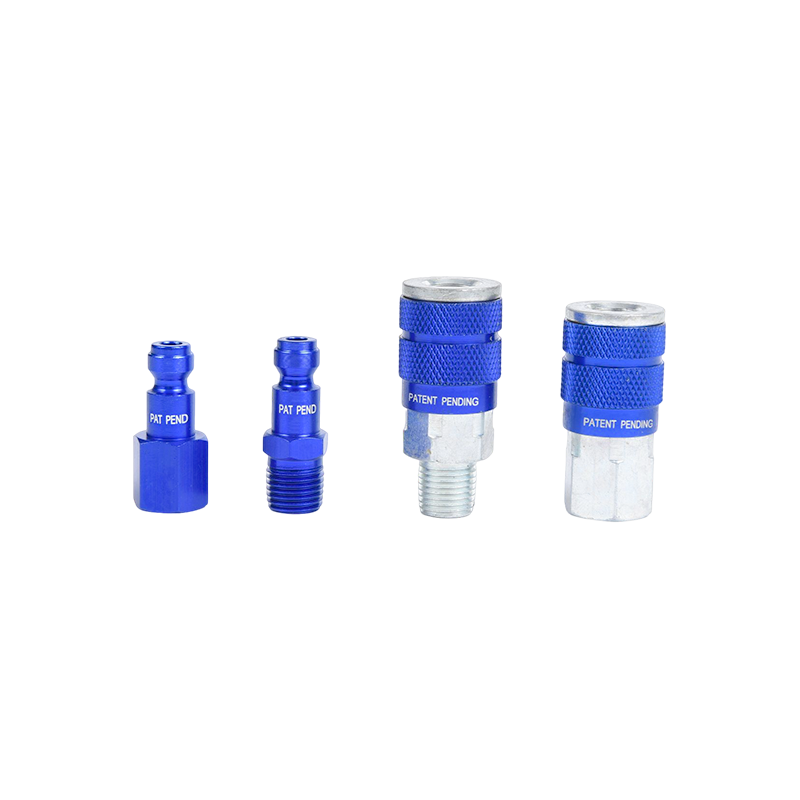

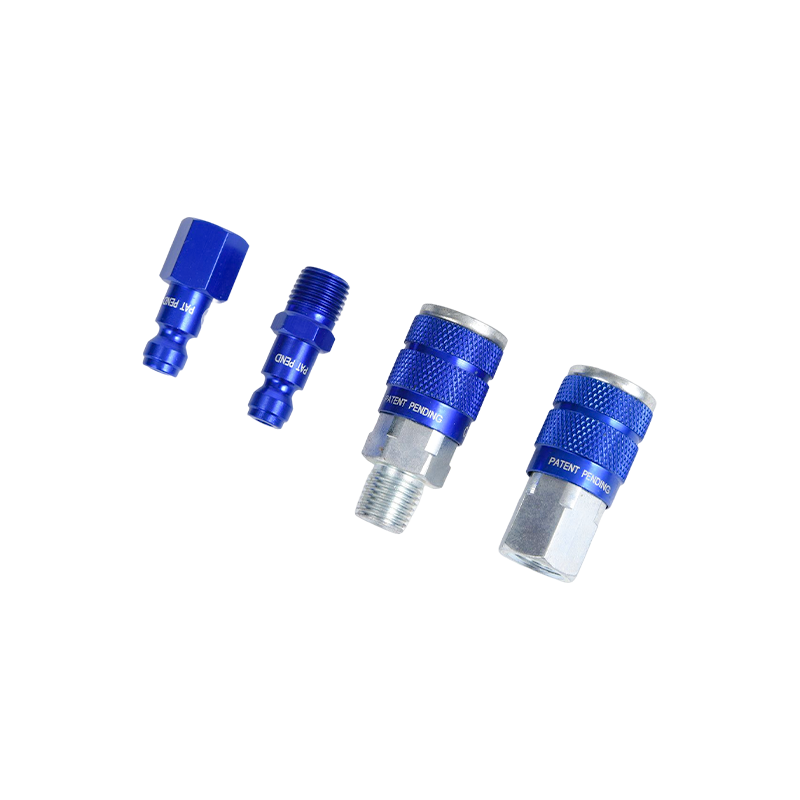

Accepts TRU FLATE type plugs Heavy-duty JU16

Product Specification:
Features. Accepts ARO type plugs
Heavy-duty, high-quality design
Deep knurled sleeve for positive clamping
Positive connection using ball locking mechanism
Applications Sleeve couplings are widely used to connect air lines and can also be used with low pressure fluids
Its compact and economical design uses a ball that engages with a locking slot on the mating connector. The sliding spring loaded sleeve on the connector must be manually retracted to connect or disconnect the joint. Easy to operate do, but usually requires two hands.
Common applications include: compressed air, water, grease, paint, limited vacuum and limited gas.
Construction Receptacle body: Galvanized steel
Backplate: Galvanized steel
Sleeve: Aluminum
Valve: Steel
Valve spring: steel
Locking ball and pin: steel
Seal: Buna-N
Specifications. Maximum working pressure: 150 PSI
Temperature Range: -40°F to 225°F (-20°C to 107°C)
Air Flow: 35 PSFM, 100 PSIG inlet, 10 PSIG pressure drop
